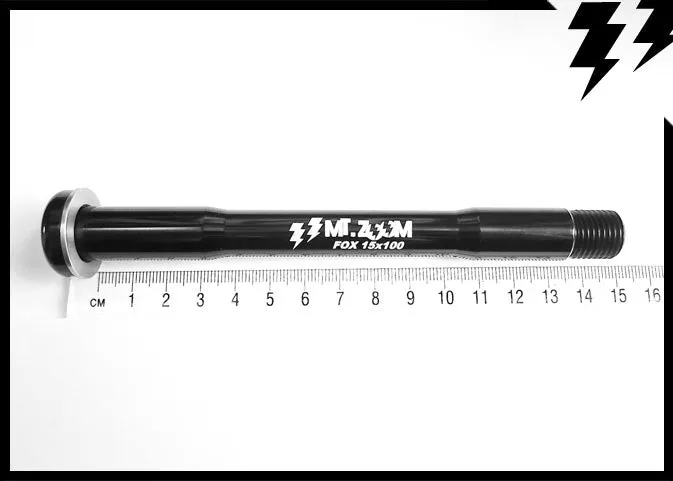

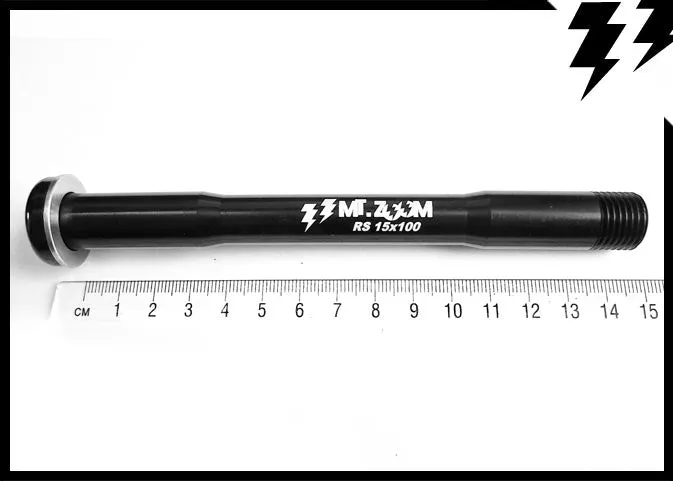

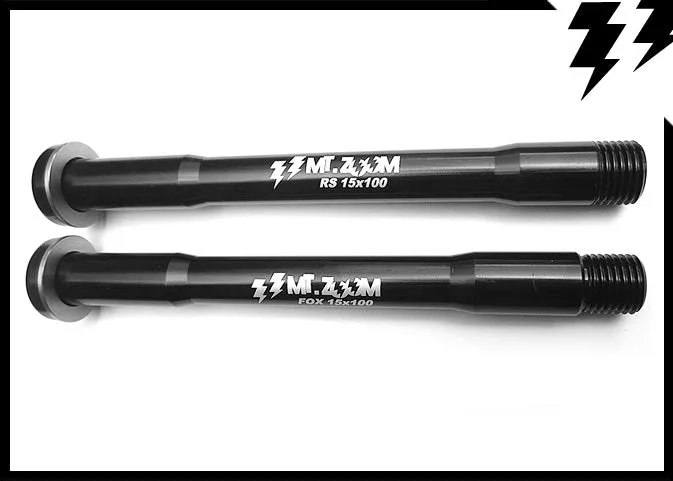

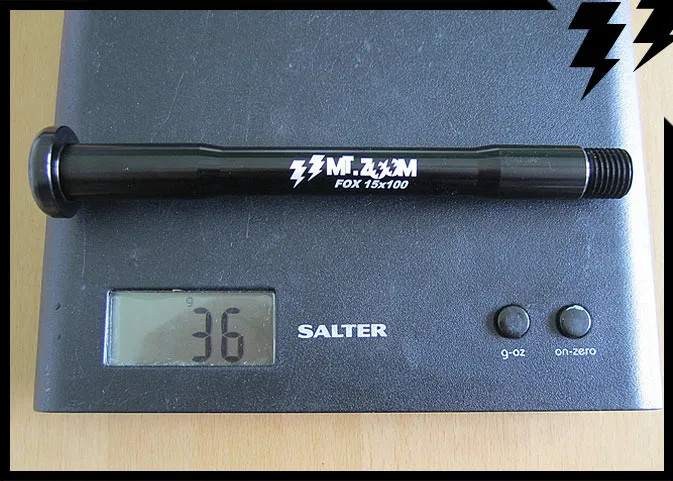

MT ZOOM Rock Shox & Fox standard length front thru axles. Simple, light, strong and excellent value. The 15mm x 100mm standards. Only 36g.

1.5mm thread pitch. Length from inner washer to end of thru axle: 146.5mm. We have the boost version on another listing.

2-year warranty.

[split]

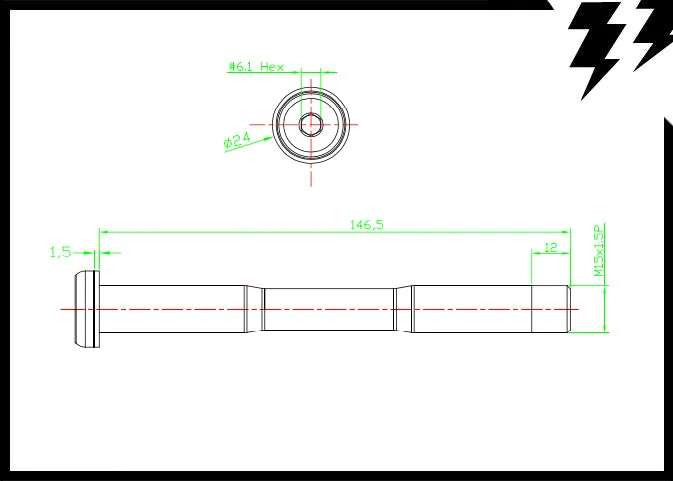

Key technical measurements:

Length from inner washer to end of thru axle: 146.5mm
1.5mmm thread pitch

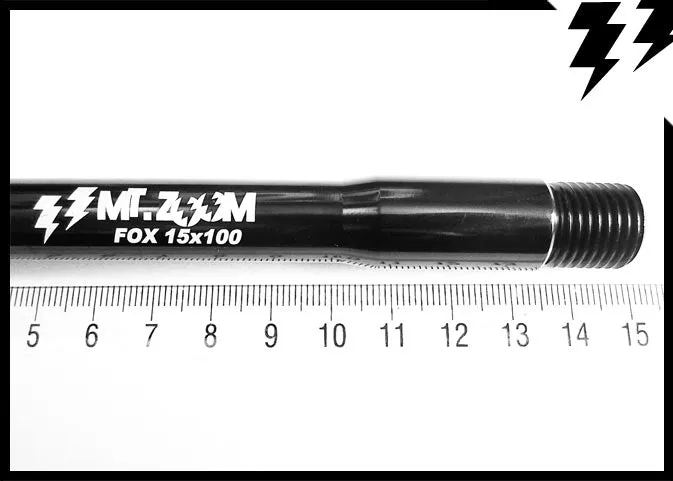

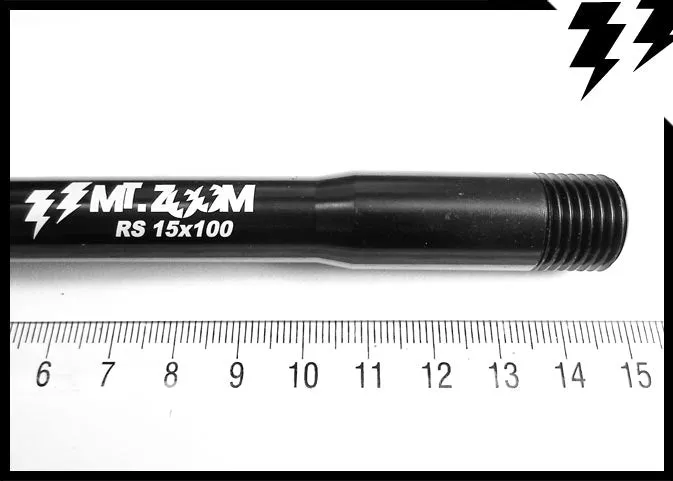

Thread area length: Fox 13.5mm / Rock Shox 12mm
Inner axle maximum width: 15mm
Washer width: 1.5mm

Anodised black
7075 Aluminium

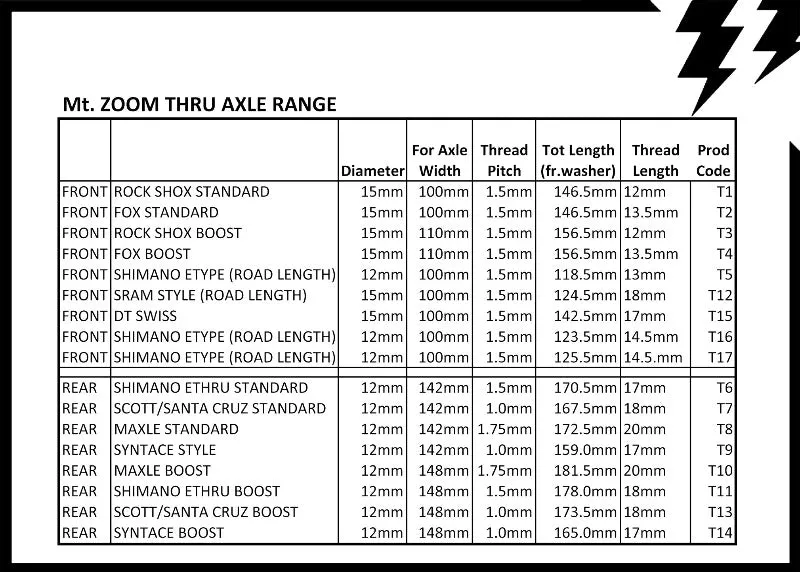

Product Codes T1 (Rock Shox) / T2 (Fox)

[split]

The 1.5mm washer helps protect the paint on your frame/for drop out - its use is optional, removing it gives extra length to the axle.

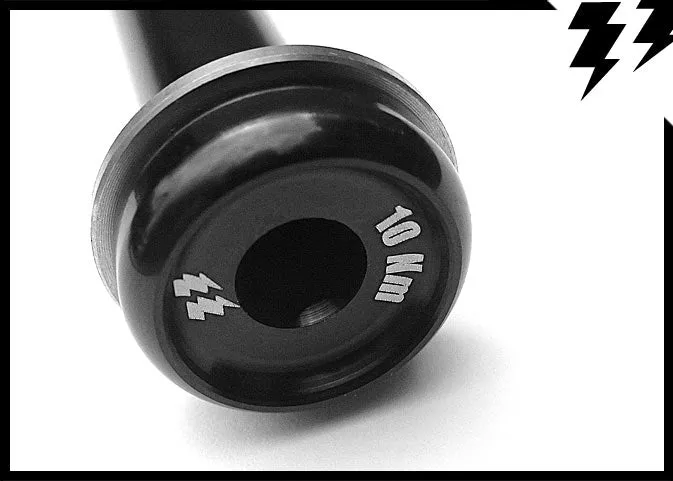

Uses 6mm hex allen key for smooth secure opening/closing (Max recommended torque 10NM).
